7 channels of 140W Class G power, perfect for cinema.

0 Reviews
£2,999 Tax included
Out of Stock

Interested in this product?

This is a product that we sell, however, not online. If you would like to enquire about this product, please make an enquiry online or by phone and we will be happy to discuss and advise.

or call +44 (0)2890 381296

Product Description

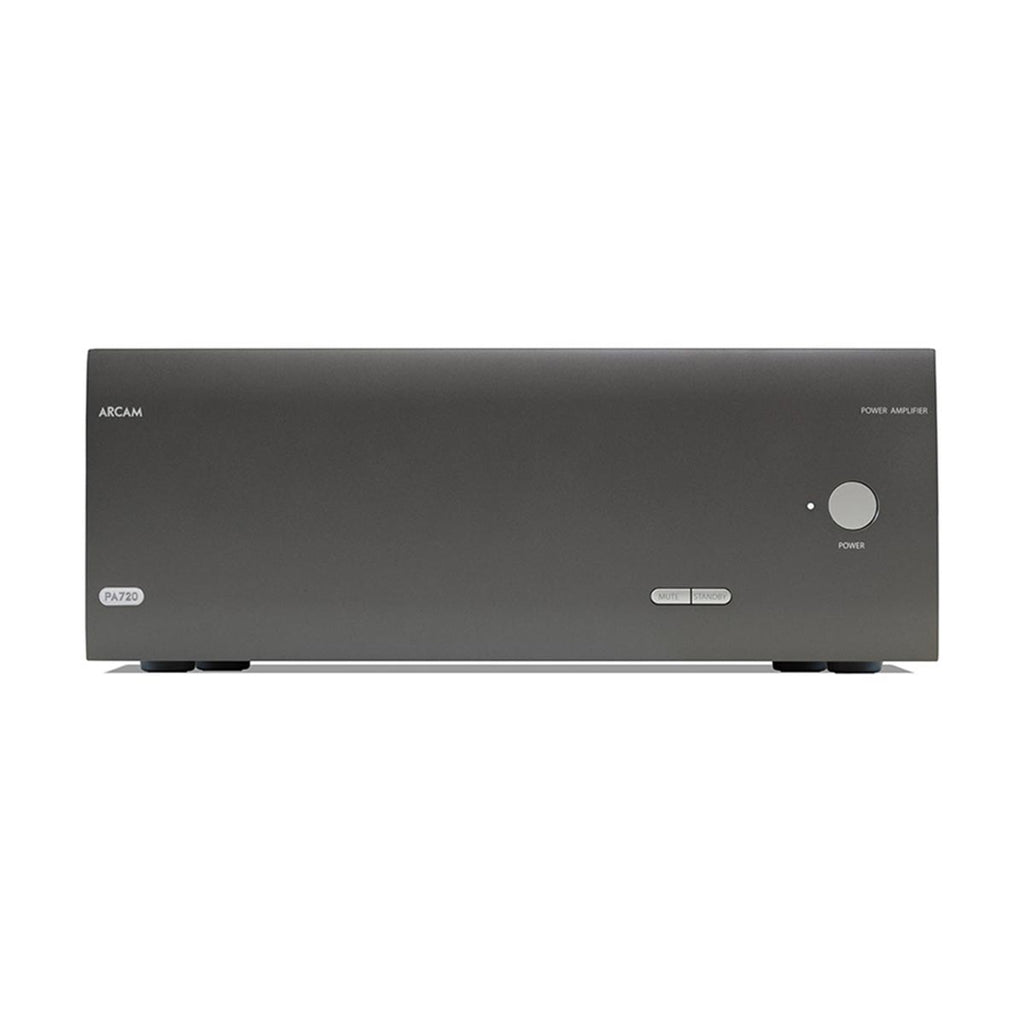

PA720 7 channel Class G Power Amplifier

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

Exceptional Power, Immersive Sound

The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

    Features:
    • 7 x 100W Class G amplification (all channels driven)
    • Class G amplification with 20W of Class A operation
    • Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz 140W / 100W
    • Five channels driven, 4Ω / 8Ω, 1kHz 175W / 110W
    • Two channels driven, 4Ω / 8Ω, 1kHz  225W / 140W
    • Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
    • Power consumption (maximum): 1.5kW
    • Power consumption (idle/typical): 90W
    • Toroidal transformer

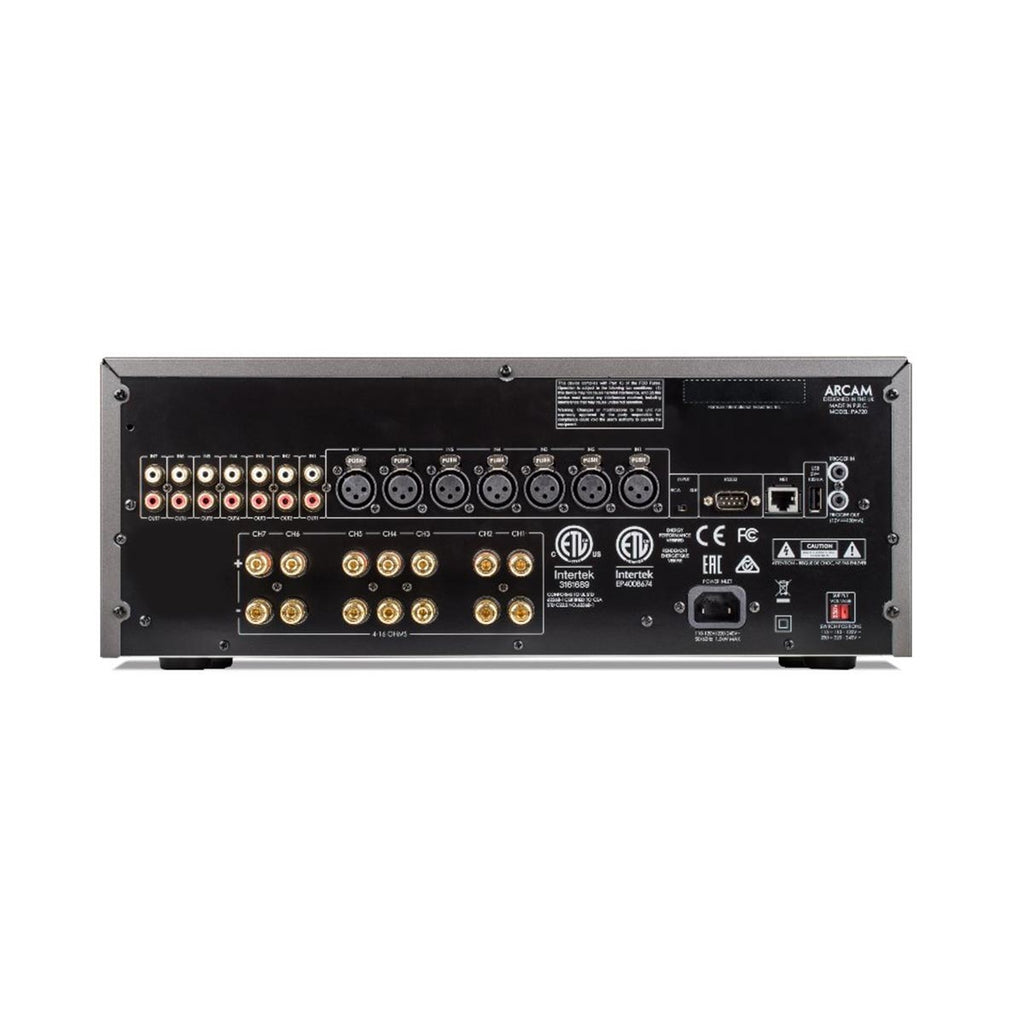

    • Ethernet, RS232 control
    • Switchable RCA or balanced XLR inputs
    • Dimensions including feet, control knob and terminal (W x D x H): 433 x 425 x 177mm
    • Weight: 39.7 lbs (18kg)

    Specifications

    Continuous power output at 0.2% THD per channel Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz 140W / 100W Five channels driven, 4Ω / 8Ω, 1kHz 175W / 110W Two channels driven, 4Ω / 8Ω, 1kHz 225W / 140W Harmonic distortion, 80% power, 8Ω at 1kHz 0.002% Inputs RCA Type XLR Type Input sensitivity 50W / 8Ω 800mV RMS 1.6V RMS Signal/Noise ratio (A-wtd) 50W / 8Ω 105dB Input impedance 10kΩ Frequency response 20 - 20kHz +/-0.05dB General Mains voltage 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 1.5kW Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour) Power consumption (standby) <0.5W Dimensions W x D x H (including feet, control knob and speaker terminals) 433 x 425 x 177mm Weight (net) 18kg Weight (packed) 19.7kg
