Less power than PA240, but 4 channels, so ideal for bi-amping, driving 2 stereo pairs, etc.

70wpc of class AB amplification.

0 Reviews
£1,499 Tax included
Out of Stock

Interested in this product?

This is a product that we sell, however, not online. If you would like to enquire about this product, please make an enquiry online or by phone and we will be happy to discuss and advise.

or call +44 (0)2890 381296

Product Description

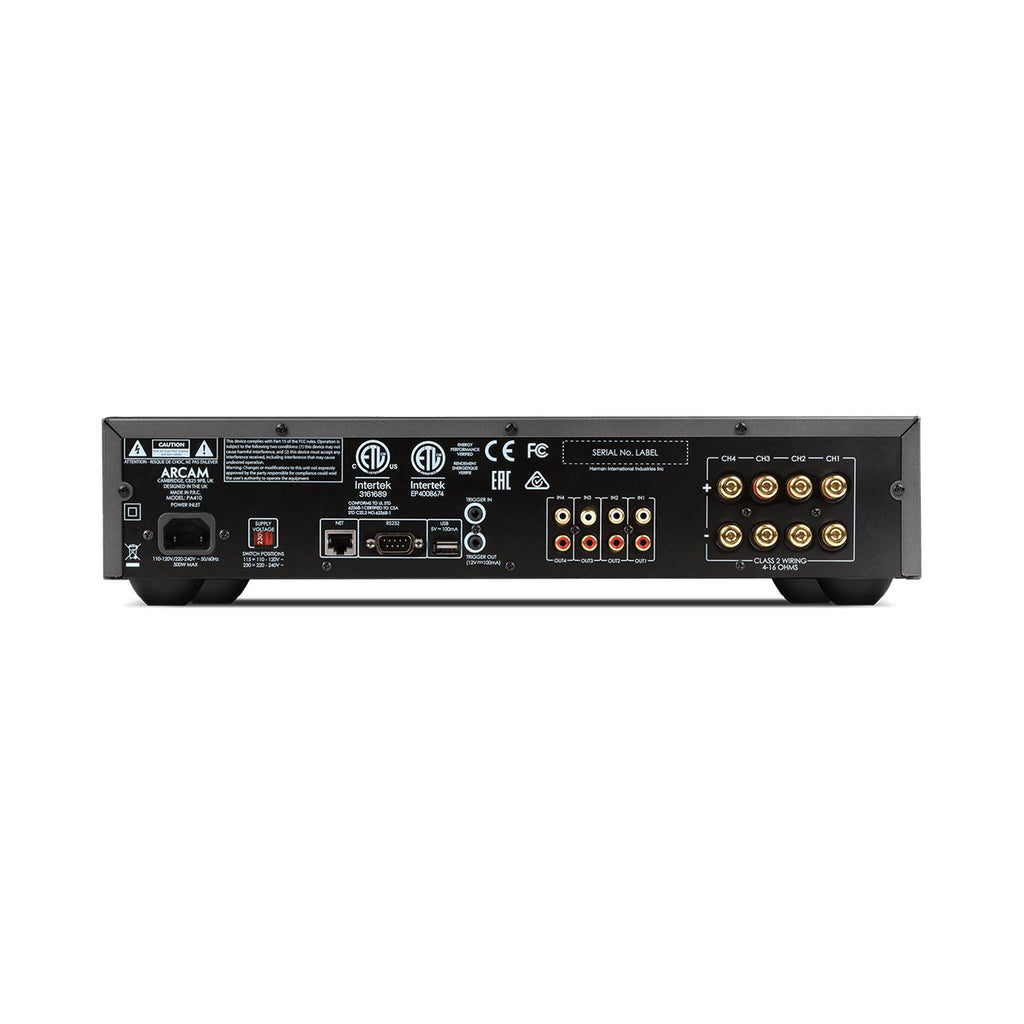

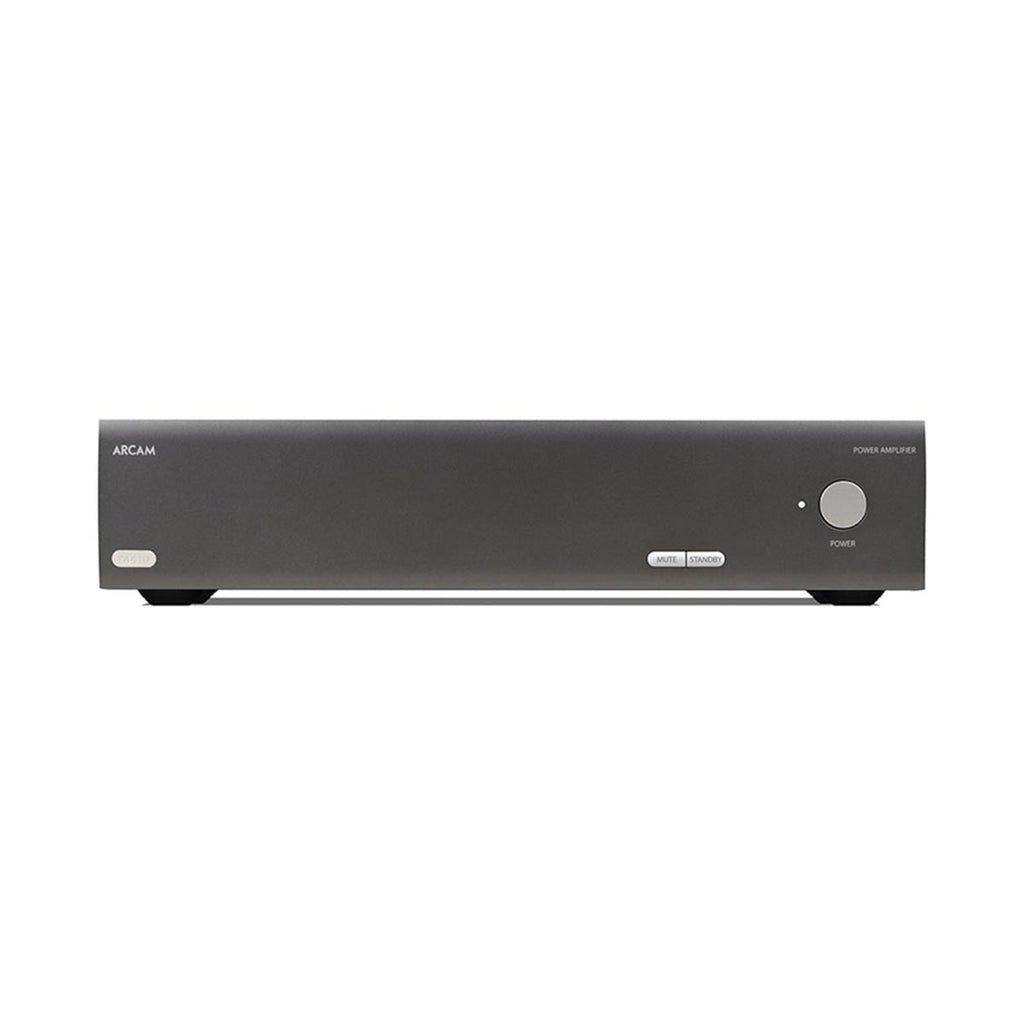

PA410 4 Channel Class AB Power Amplifier

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

Exceptional Power, Immersive Sound

The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

    Features:
    • 4 x 50W Class AB amplification (8ohm, 20Hz-20kHz, 0.2% THD)
    • Four channels driven, 4Ω/8Ω, 20Hz - 20kHz  70W / 50W
    • Two channels driven, 4Ω/8Ω, 20Hz - 20kHz  90W / 60 W
    • Harmonic Distortion, 80% power, 8Ω at 1kHz - 0.003%
    • Power Consumption (maximum): 700W
    • Power Consumption (idle/typical): 90W
    • Toroidal transformer
    • RS232 control
    • Dimensions (W x D x H): 433 x 325x 105mm

    Specifications

    Continuous power output at 0.2% THD per channel Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 70W / 50W Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 90W / 60W Harmonic distortion, 80% power, 8Ω at 1kHz - 0.003% Inputs Input sensitivity 50W / 8Ω - 600mV RMS Signal/Noise ratio (A-wtd) 50W / 8Ω - 105dB Input impedance - 10kΩ Frequency response - 20 - 20kHz +/-0.05dB General Mains voltage - 110–120V or 220–240V, 50–60Hz Power consumption (maximum) - 700W Power consumption (idle, typical) - 90W (Thermal dissipation approx. 340 BTU/hour) Power consumption (standby) - <0.5W Dimensions W x H x D (including feet, control knob and speaker terminals) - 433x325x105mm Weight (net) - 10kg Weight (packed) - 11.5kg EAN - 6925281969195
